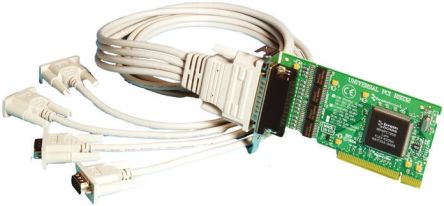

BRAINBOXESUC-2604 Port PCI RS232 Board

Bus Type PCICommunication Interface SerialCổng kết nối RS232FIFO Size 64 B
Mã nhà sản xuất
UC-260
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
4811208
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Low Profile Board (4 Ports)

Sample programs, test and terminal software - all with source code

Ideal for modem connectivity, remote access servers, instrument control, UPS control, laptop docking stations, banking and financial sector

UART: 16550

PCI Serial Boards/RS-232

PCI Bus: High performance I/O slot in every desktop Pentium, Pentium (II) and Pentium Pro PC. PCI provides improved performance to all running applications by freeing up the CPU.,PCI boards are detected and configured automatically by the PC, avoiding conflicts in address and interrupts. PCI boards automatically implement a shared interrupt system so maximising use of precious system resources.,The Windows device drivers supplied with each serial card reads the PCI assigned setup and configures your system accordingly. Products in this range are supplied with Vista and Windows drivers and are Plug-and Play compatible.,PCI 2.3 requires that all plug-in cards support 3.3V signalling. To support many older systems that use 5V signalling the following Brainboxes products are compatible with both 3.3V and 5V signalling.All the boards in this range also share the same following specifications:

Data bits: 5, 6, 7 or 8

Stop bits: 1 or 2

Parity: Odd, even, mark, none or spaces

THÔNG SỐ KỸ THUẬT
Bus Type PCI
Communication Interface Serial
Number of Ports 4
Connection Port RS232
Maximum Baud Rate 115.2kbit/s
FIFO Size 64 B
