BRAINBOXESUC-2654 Port PCI RS232 Board

Bus Type PCICommunication Interface SerialCổng kết nối RS232FIFO Size 64 B
Mã nhà sản xuất
UC-265
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
4811652
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

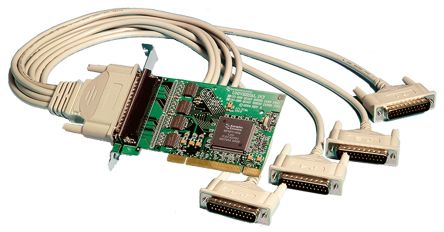

Serial Board- 4 Port RS232

Universal PCI serial board provides 4 industry standard RS232 serial COM ports in a single PCI slot.

4 Port RS232

PCI 3.0

64 byte Tx & 64 byte Rx FIFOs

Data rate up to 115,200 baud

DB9 connector (481-1191)

DB25 connector (481-1652)

Drivers for all popular operating systems

Lifetime warranty and support

PCI Serial Boards/RS-232

PCI Bus: High performance I/O slot in every desktop Pentium, Pentium (II) and Pentium Pro PC. PCI provides improved performance to all running applications by freeing up the CPU.,PCI boards are detected and configured automatically by the PC, avoiding conflicts in address and interrupts. PCI boards automatically implement a shared interrupt system so maximising use of precious system resources.,The Windows device drivers supplied with each serial card reads the PCI assigned setup and configures your system accordingly. Products in this range are supplied with Vista and Windows drivers and are Plug-and Play compatible.,PCI 2.3 requires that all plug-in cards support 3.3V signalling. To support many older systems that use 5V signalling the following Brainboxes products are compatible with both 3.3V and 5V signalling.All the boards in this range also share the same following specifications:

Data bits: 5, 6, 7 or 8

Stop bits: 1 or 2

Parity: Odd, even, mark, none or spaces

THÔNG SỐ KỸ THUẬT
Bus Type PCI
Communication Interface Serial
Number of Ports 4
Connection Port RS232
Maximum Baud Rate 115.2kbit/s
FIFO Size 64 B
