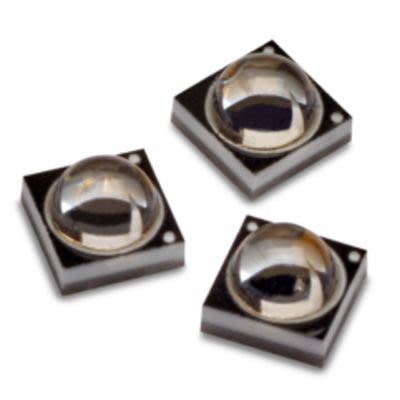

BROADCOMAUV3-ST32-0SV0KAUV3-ST32-0SV0K Broadcom, AUV3 Series 3 UV LED, 395nm 1460mW 35 °

Number of LEDs 3Peak Wavelength 395nmRadiant Flux 1460 mWViewing Angle 35 °
Mã nhà sản xuất
AUV3-ST32-0SV0K
Thương hiệu
Quy cách đóng gói
10 cái (băng liên tục)
Mã kho
2155752
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

978

The Broadcom 3W 3535 surface mount UV LEDs are energy-efficient LEDs that can be driven at high driving current and can dissipate heat efficiently, resulting in higher reliability. Their low-profile package design addresses a wide variety of applications where superior robustness and high efficiency are required. They are packaged with ceramic-based materials, and the quartz lens on top of the package provides the product longevity needed for the respective end applications. The 3W 3535 Surface Mount UV LEDs are compatible with the reflow soldering process. To facilitate easy pick-and-place assembly, the LEDs are packed in tape and reel. Each reel is shipped in single flux and single colour bin to ensure close uniformity.

High-reliability package with quartz encapsulation

High-radiant flux output using InGaN dice technology

Available in 360-nm to 400-nm wavelength range

Available in 35o and 60o viewing angles

Compatible with the reflow soldering process

JEDEC MSL 2

THÔNG SỐ KỸ THUẬT
Manufacturer Broadcom
Manufacturer Part No. AUV3-ST32-0SV0K
Number of LEDs 3
Peak Wavelength 395nm
Radiant Flux 1460 mW
Package Type 3535
Viewing Angle 35 °
Series AUV3

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
