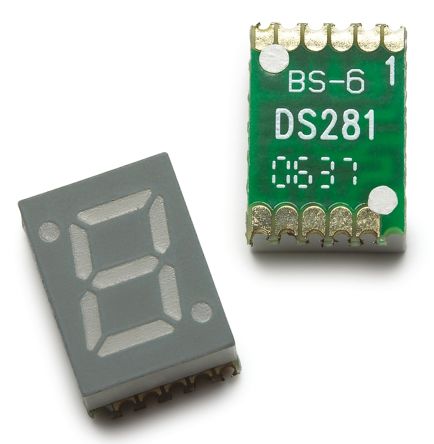

HDSM-433C Broadcom 7-Segment LED Display, CC Red 14.3 mcd RH DP 10mm [HDSM-433C]; 813-4782
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 6.2mm |
| Character Height | 10mm |
| Common Connection | Cathode |
| Mounting Type | Surface Mount |
| External Height | 3.8mm |
| External Depth | 15mm |
| External Dimensions | 9.8 x 15 x 3.8mm |
| External Width | 9.8mm |
| Luminous Intensity | 14.3 mcd |
| Colour of Face | Grey |
| Power Dissipation | 65mW |
| Decimal Orientation | Right Side |
| Forward Voltage | 2 V |
| Minimum Operating Temperature | -40°C |
| Forward Current | 25mA |
| Maximum Operating Temperature | +105°C |
| Operating Temperature Range | -40 → +105°C |
