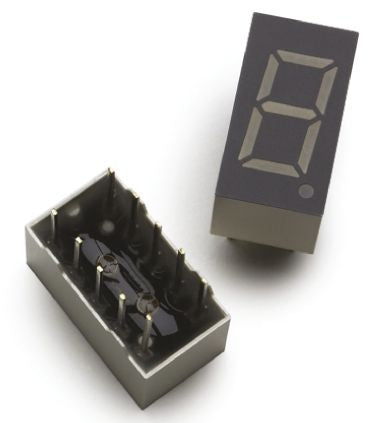

HDSP-C3E3 Broadcom 7-Segment LED Display, CC Red 1.1 mcd RH DP 9.1mm [HDSP-C3E3]; 178-3042
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 643 nm |
| Character Width | 4.8mm |
| Character Height | 9.1mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 8.5mm |
| External Height | 14mm |
| External Dimensions | 14 x 7.5 x 8.5mm |
| External Width | 7.5mm |
| Luminous Intensity | 1.1 mcd |
| Colour of Face | Grey |
| Forward Current | 25mA |
| Minimum Operating Temperature | -40°C |
| Decimal Orientation | Right Side |
| Forward Voltage | 1.85 V |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
