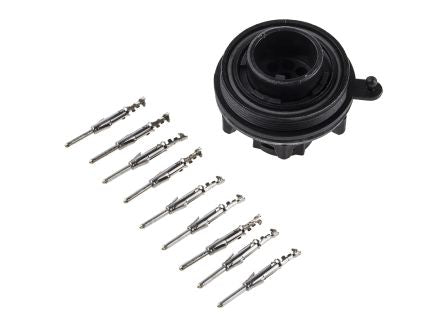

BULGINPX0727/PStandard Buccaneer Series Male Panel Mount Connector, 9 contacts Socket

Giắc tròn công nghiệp Buccaneer, 9, Plug

Dòng sản phẩm BuccaneerSố chân 9Phích / ổ PlugChân đực / cái MaleKiểu lắp Panel Mount
Mã nhà sản xuất
PX0727/P
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
452108
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Bulgin Buccaneer Standard Sealed Power Connectors, Rear Panel Mounting

From Bulgin, the Buccaneer Standard Series of low profile panel connectors are robust and versatile connectors for power management solutions. With a screw locking mating system that ensures a secure connection, these compact connectors are ideal for use in challenging conditions.

With no special tooling needed for termination, the Buccaneer Standard series connectors are easy to assemble, even in the field. The panel connectors have a single hole fixing with an easy to use jam nut.

The connectors also feature a positive locking mating system which means the connector cannot be mis-matched.

Environment

The Standard Series of Buccaneer connectors are protected to IP68 when mated. This means they are dust tight, and resistant against particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.

Features and Benefits

  • IP68
  • UL94HB Housing
  • Insulation Resistance of >104 MΩ @ 500 V dc
  • Positive locking keyways
  • Front Panel Mounting

Applications

Due to their excellent environmental resistance properties, Buccaneer connectors are ideal for harsh industrial environments and automotive applications. Their excellent resistance to liquid ingress also makes them suitable for marine applications.

FAQ

Q: Are there accessories available for this connector?

A: There are connector caps available for Standard Buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.

Q: How durable is the connector?

A: The Standard Buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oils and saltwater.

Q: What are the mating requirements of this connector?

A: The Buccaneer standard series panel connectors mate with corresponding flex cable connectors.

Q: Are contacts supplied with this connector?

A: Panel connectors with 2 to 9 poles are supplied with contacts. The 12 to 25 pole connectors are supplied without contacts.

Approvals

CSA; UL; VDE

THÔNG SỐ KỸ THUẬT
Number of Contacts 9
Mounting Type Panel Mount
Plug/Socket Plug
Connector Size Standard
Termination Method Crimp
Shell Size 38
Current Rating 5.0A
IP Rating IP68
Contact Gender Male
Voltage Rating 150 V ac/dc
Mating Type Threaded
Body Orientation Straight
Series Buccaneer
Housing Material Polymer
Contact Plating Tin
Contact Material Copper
Gender Male
