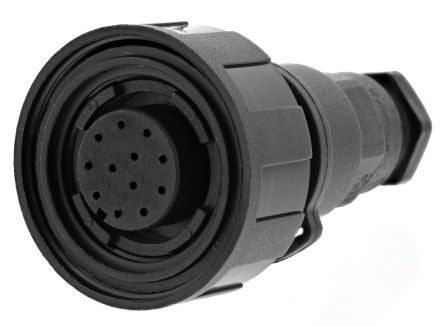

BULGINPX0794/SStandard Buccaneer Series Female Cable Mount Connector, 12 contacts Socket

Giắc tròn công nghiệp Buccaneer, 12, Socket

Dòng sản phẩm BuccaneerSố chân 12Phích / ổ SocketChân đực / cái FemaleKiểu lắp Cable Mount
Mã nhà sản xuất
PX0794/S
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
4944588
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Bulgin Buccaneer Standard Sealed Power Connectors

From Bulgin, the Buccaneer Standard Series of Flex Cable Connectors are robust and versatiles connector for power management solutions. With a screw locking mating system that ensures a secure connection, these compact connectors are ideal for use in challenging conditions.

With no special tooling needed for termination, the Buccaneer Standard series connectors are easy to assemble, even in the field.

The connectors also feature a positive locking mating system which means the connector cannot be mis-matched.

Environment

The Standard Series of Buccaneer connectors are protected to IP68 when mated. This means they are dust tight, and resistant against particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.

Features and Benefits

  • IP68
  • UL94HB Housing
  • Insulation Resistance of >104 MΩ @ 500 V dc
  • Positive locking keyways
  • 7 - 9 mm Ø Cable Acceptance

Applications

Due to their excellent environmental resistance properties, Buccaneer connectors are ideal for harsh industrial environments and automotive applications. Their excellent resistance to liquid ingress also makes them suitable for marine applications.

FAQ

Q: Are there accessories available for this connector?

A: There are connector caps available for Standard Buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.

Q: How durable is the connector?

A: The Standard Buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oils and saltwater.

Q: What are the mating requirements of this connector?

A: The Buccaneer standard series cable connectors mate with corresponding in-line connectors for a cable to cable connection, or with panel, chassis and pcb connectors.

Q: Are contacts supplied with this connector?

A: Contacts are not supplied with 12 and 25 way connectors, and must be ordered separately.

Approvals

CSA; UL; VDE

THÔNG SỐ KỸ THUẬT
Number of Contacts 12
Plug/Socket Socket
Mounting Type Cable Mount
Connector Size Standard
Termination Method Crimp, Solder
Shell Size 38
Current Rating 5.0A
IP Rating IP68
Contact Gender Female
Voltage Rating 50 V ac/dc
Mating Type Threaded
Body Orientation Straight
Series Buccaneer
Housing Material Polymer
Contact Material Copper
Contact Plating Gold
Gender Female
