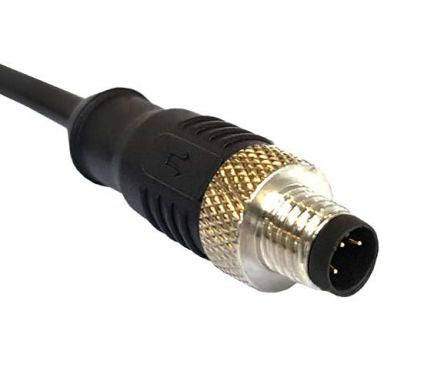

BULGINPXPPVC12FIM05ACL010PVCM12 Series, Straight M12 to Unterminated Cable assembly, 1m Cable

Cable Shape Single CoreCoding AVật liệu lõi BrassConductor Resistance <10 mΩ
Mã nhà sản xuất
PXPPVC12FIM05ACL010PVC
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1446879
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Bulgin's M12 connectors provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications.

Reliable industry standard screw locking mechanism

IP67 degree of protection

A, B and D Coded versions

Field installable, cable and panel mount options

Plastic and metal options variants

Straight and right angled forms

Overmolded PVC or PUR cable connectors

Shielded options

Pole variants from 3 – 12

M12 Flex Inline Body Male

THÔNG SỐ KỸ THUẬT
Manufacturer Bulgin
Manufacturer Part No. PXPPVC12FIM05ACL010PVC
Series M12
Number of Cores 5
Sheath Material PUR
Sheath Colour Black
Length 1m
Connector 1 Gender Male
Connector 1 Number of Contacts 5
Connector 1 Orientation Straight
Connector 1 M12
Connector 2 Unterminated
Coding A
Shielded/Unshielded Unshielded
Voltage Rating 60V
Current Rating 4A
IP Rating IP67
Conductor Material Brass
Conductor Resistance <10 mΩ
Maximum Operating Temperature +80°C
Cable Shape Single Core
Outer Diameter 4.6 → 8 mm
Minimum Operating Temperature -25°C
Operating Temperature Range -25 → +80 °C
Connector 1 Housing Gender Male
