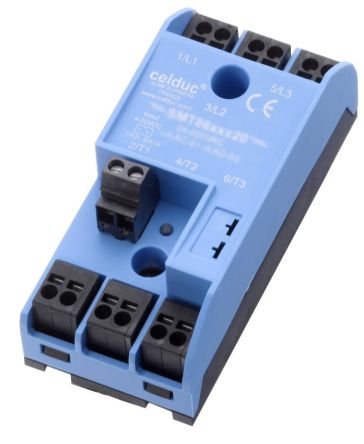

CELDUCSMT8620520Solid State Relay, Zero Cross, Panel Mount

Relay bán dẫn (SSR) 25A, 4 → 30 V dc, Zero Cross

Dòng tải tối đa 25AĐiện áp điều khiển 4 → 30 V dcKiểu đóng cắt Zero CrossKiểu lắp Panel Mount
Mã nhà sản xuất
SMT8620520
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1737272
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Superior design, easy to install, optimum lifespan and price-eectiveness are delivered with the new generation of three-phase Solid State Relays :cel3pac and sightpac ranges.

Three-phase SSRs

Input connector and spring power terminals

THÔNG SỐ KỸ THUẬT
Manufacturer Celduc
Manufacturer Part No. SMT8620520
Maximum Load Current 25A
Mounting Type Panel Mount
Maximum Control Voltage 30V dc
Minimum Control Voltage 4V dc
Switching Type Zero Cross
Control Voltage Range 4 → 30 V dc
Range sightpac
Minimum Load Current 5mA
Number of Poles 3
Terminal Type Push In
Output Device Triac
Relay Type Solid State Relay
Series SMT
Load Voltage Range 24 → 520 V ac
Maximum Turn On Time 1/2 cycle
Dimensions 45 x 36.7 x 99.8mm
Off State Leakage Current 1mA
Standards Met CE, EAC, cURus
Operating Temperature Range -40 → +85 °C
Depth 36.7mm
Maximum Operating Temperature +85°C
Special Features Direct Copper Bonding (DCB) Technology, Zero Cross
Height 99.8mm
Length 45mm
Minimum Operating Temperature -40°C

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
