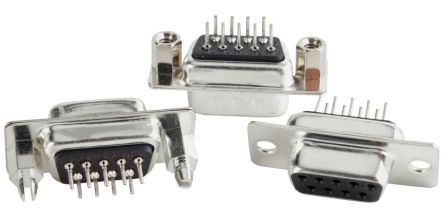

CONECDLS1XS4AA35XDLS1XS4 9 Way PCB D-sub Connector Socket

The CONEC D-Sub female connector features an insulator made of thermal plastic UL 94 V-0, contacts made from copper alloy, and a steel shell. The rivet and board lock are made from copper alloy. The contact plating includes a 50μin nickel under plate, with a gold flash on the contact area and solder tails. It has an operation voltage of 250 VAC maximum, a current rating of 3A maximum, and a contact resistance of 15 mOhm maximum.

Insulation resistance 3000 MOhm minimum at 500 VDC

Dielectric withstanding voltage 1000 VAC/minute

Operating temperature -55°C to +105°C
