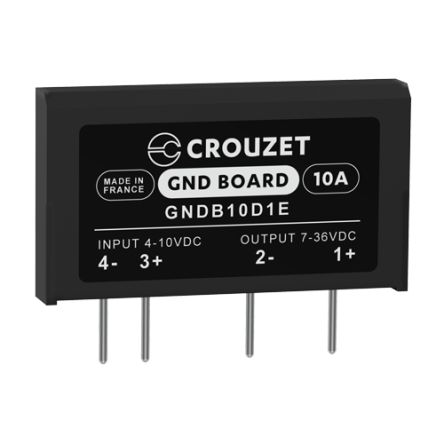

CROUZETGNDB10D1EGND Board Series Solid State Relay, 10 A rms Load, PCB Mount, 36 Vrms Load

Cấu hình tiếp điểm SPSTDòng tải tối đa 10A rmsĐiện áp tải tối đa 36V rmsMinimum Load Current 0.1mA rms
Mã nhà sản xuất
GNDB10D1E
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Crouzet GNB Series is a Solid State Relays that is designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose.

Output current of 4 Amps

Classic SIP package for printed circuit boards

Zero Cross and Special Zero Cross Switching

Built-in Output Overvoltage Protection

THÔNG SỐ KỸ THUẬT
Manufacturer Crouzet
Manufacturer Part No. GNDB10D1E
Maximum Load Current 10A rms
Mounting Type PCB Mount
Maximum Load Voltage 36V rms
Minimum Load Voltage 7V rms
Switching Type DC Switching
Range SSR
Minimum Load Current 0.1mA rms
Contact Configuration SPST
Output Device Triac
Series GND Board

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
