DIGILENT410-413410-413 for use with Analog Discovery 2 and Analog Discovery (Legacy)

Dùng cho Analog Discovery 2 and Analog Discovery (Legacy)
Mã nhà sản xuất
410-413
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2222680
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

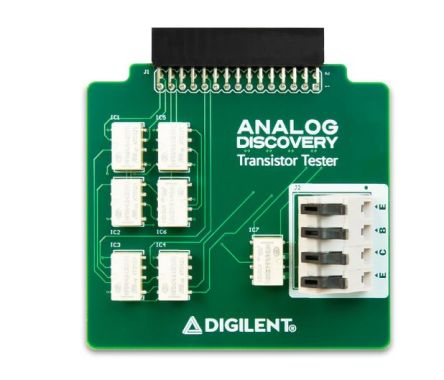

The Digilent Transistor Tester can be plugged into the Analog Discovery and enable the use of this instrument without any need for reference circuit set ups, similar to a traditional curve tracer instrument. The adapter is loaded with a 2x15 female connector which can be plugged directly into the Analog Discovery. Components or leads can be attached via the terminal block on the Transistor Tester. The curve tracer instrument in Waveforms allows the Analog Discovery to draw characteristic curves of common devices like diodes, NPN and PNP transistors, and both P- and N-type FETs. However, unlike traditional curve tracer instruments, Waveforms runs on a computer, readily providing measurements, cursors and screenshots that can be taken with the click of a button. This is extremely convenient for lab reports, and much more accurate than a photo of a display.

Works with diodes, NPN and PNP transistors, and P- and N-Type FETs

Connector J2 for E / C / B / E connections

10 kΩ Internal Resistor for Rb

100 Ω Internal Resistor for Rc

Compatible with the Analog Discovery 2 and Analog Discovery (Legacy)

2x15 Analog Discovery connector

.THÔNG SỐ KỸ THUẬT:
For Use With Analog Discovery 2 and Analog Discovery (Legacy)
