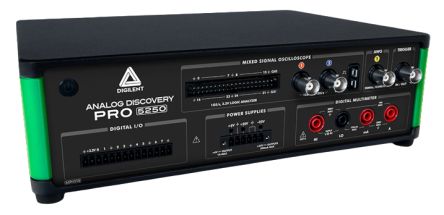

DIGILENT471-058ADP5250 Analog Discovery Pro Series, 100MHz Bench Mixed Domain Oscilloscope, 34 Digital Channels
Analog Discovery Pro ADP5250 Mixed Signal Oscilloscope
This Digilent product is designed to combine a complete set of instruments into a flexible and programmable device, the ADP5250 features a mixed-signal oscilloscope with two 100 MHz bandwidth, 1 GS/s analog channels, 34 digital channels, a tri-output power supply capable of up to 25 V, an external trigger, Waveform Generator, and a built-in programmable DMM. This is our first instrument with full DMM capabilities including true current and resistance measurement and a 300 V input range.
Used in the Logic Analyzer
Channels are 32
Input voltage is 0 V to 5 V
Input threshold is 0 V to 2 V
Max sampling rate is 1 GS/s
Typical record length is 1 MS
