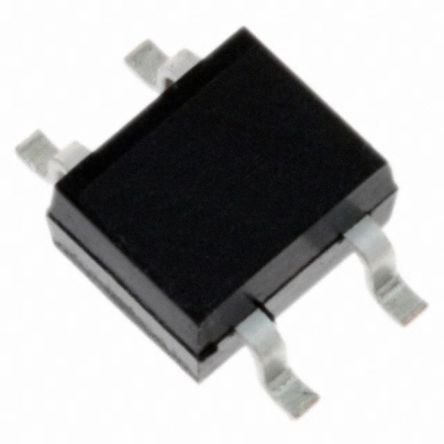

DIODESZETEXHBS810-13Diodes Inc HBS810-13, Bridge Rectifier, 8A 1000V, 4-Pin HBS

Bridge Type Single PhaseConfiguration SingleKiểu lắp Surface MountPeak Average Forward Current 8A
Mã nhà sản xuất
HBS810-13
Thương hiệu
Quy cách đóng gói
50 cái (băng liên tục)
Mã kho
2139266
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The DiodesZetex HBS810 series is a glass passivated bridge rectifier. It has high forward current capability up to 8.0A and forward voltage is 1V. It is used in AC-to-DC bridge full wave rectification for fast charging, switching power supply, USB PD, ada

High heat dissipation capability

Low profile package

Low forward voltage drop

THÔNG SỐ KỸ THUẬT
Manufacturer DiodesZetex
Manufacturer Part No. HBS810-13
Peak Average Forward Current 8A
Bridge Type Single Phase
Peak Reverse Repetitive Voltage 1000V
Mounting Type Surface Mount
Package Type HBS
Pin Count 4
Configuration Single

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare
📄 Datasheet DIODESZETEX HBS810-13 (PDF)
