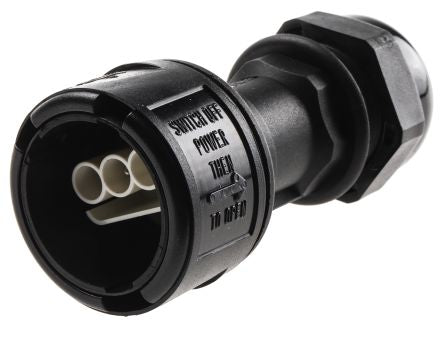

ELKAY ELECTRICAL3 Pole Female Cable Mount Mains Inline Connector,Cable Diameter 12 → 16mm Rated At 16A,250 V ac/dc
ABB 185-1A1031-S0301 Mains Inline Connector, 16A Current Rating, IP68 - 185-1A1031-S0301
This mains inline connector is a robust solution designed for cable mounting applications. With a compact diameter of 37mm and a length of 80mm, it accommodates cable sizes between 12mm and 16mm, ensuring versatility for various industrial requirements. Engineered for functionality, this connector is suitable for both AC and DC applications with a voltage rating of 250V.
Features & Benefits
- Rated for a maximum current of 16A for enhanced performance
- IP68 rating ensures resistance to water ingress
- Screw-down termination provides secure connections
- Designed for female configurations for easy connectivity
- Compatible with cable diameters from 12mm to 16mm
- Ideal for high-current electrical applications
Applications
- Utilised in industrial automation systems
- Employed in mechanical and electrical installations
- Suitable for outdoor electrical connections
- Ideal for marine where waterproofing is critical
- Used on construction sites requiring durable connectors
What is the significance of the IP68 rating for this product?
The IP68 rating indicates exceptional protection against dust and immersion in water, making it highly suitable for outdoor and harsh environments.
How do I determine the correct cable size for connecting this product?
This connector accommodates cables with diameters ranging from 12mm to 16mm, ensuring a snug fit while maintaining safety standards.
Can it be used for both AC and DC applications?
Yes, it operates effectively for both AC and DC, allowing for versatile use in various electrical systems.
What methods are available for terminating the cables?
The connector uses a screw-down termination, which ensures a secure and long-lasting connection, ideal for preventing disconnections in demanding conditions.
Is this connector suitable for high-current applications?
Yes, it is rated for a maximum current of 16A, making it appropriate for high-current electrical setups.
