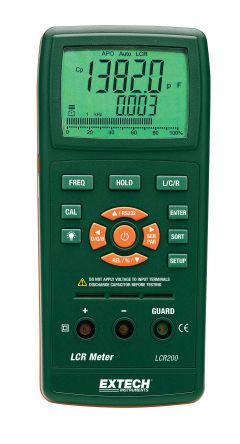

EXTECHLCR200LCR200 LCR Meter 200μF, 200 kΩ, 2kH

The FLIR Passive Component LCR Meter measures Inductance, Capacitance, and Resistance with secondary parameter Q (Quality), D (Dissipation), R (Resistance), θ (Phase), ESR (Equivalent Series Resistance). It has Auto Select measurement function with 1kHz default test frequency. It has Open and Short calibration removes unwanted stray impedances from the measurement.

Five test frequencies

Relative mode function

Parallel or Series equivalent circuit

Auto power off with disable
