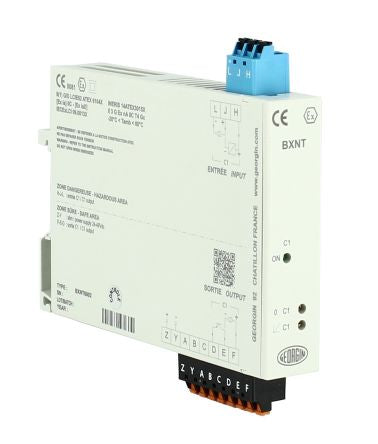

GEORGINBXNT60021 Channel Intrinsic Security Power Supply, ATEX

Mã nhà sản xuất
BXNT6002
Thương hiệu
Quy cách đóng gói
1 hộp
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

The galvanically insulated interface is an associated intrinsic safety item of equipment that is installed in a safe zone or in zone 2 in an IP 54 housing, thanks to the Ex nA protection mode. Its mission is to limit the level of energy that may appear in an electric circuit routed through a potentially explosive area, whatever the connection established upstream.

In addition to its energy-limiting function, its facilitates the use of signals in safe areas (e.g., relays), converts signals (e.g., 4/20 mA to 0-10V) or duplicates signals. Other functions are also available, such as the threshold relay or powering intrinsic safety.

Transmitter power supply

Input: 1 x 4/20mA

Output: 1 x 4/20mA

Option: without, clamp terminals

Power supply: 24/48 Vdc

DIN rail mounting housing

ATEX / IECEx informations:

EC type examination certificate LCIE 02 ATEX 6104X

IECEx LCI 09.0013X certificate

[Ex ia] IIC (-20 °C < Ta < 60 °C)

Group II (surface) - category (1) G/D

Installation in safe zone

Barrier for equipment installed in zone 0,1,2 et 20,21,22

See leaflet for a safe use
