IDEAL INDUSTRIES85-9503-Way IDC Connector for Wire Mount, 1-Row

Insulator Colour YellowKiểu chân Wire Splice
Mã nhà sản xuất
85-950
Thương hiệu
Quy cách đóng gói
Gói 25 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

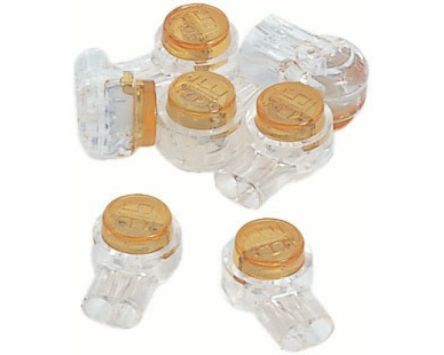

IDC Jellybean Connectors UY 2-Wire (25/PK)

IDEAL® IDC Insulation Displacement Connectors (jellybeans) are perfect for splicing or repairing low voltage cables in telecommunications, voice, and data applications. They feature an internal moisture-resistant gel sealant to protect the splice in outdoor locations. These 2 position yellow UY butt-splice connectors are suitable for 2 wires. Crimping these connectors is easy using a parallel action tool to ensure even crimps. The IDEAL® Kinetic® Super Wire Stripper/Crimper (33-719) tool is designed for use with all jellybean connectors. Simply insert the unstripped conductors into the ports until they pass the internal bus bar and reach the end of the connector, then, place the connector assembly on the tool's flat pad surface and slowly squeeze until the colored cap snaps down into place over the conductors.

For splicing or repairing low voltage cables in telecommunications, voice, and data applications

No need to strip individual wires before crimping

Moisture-resistant sealant protects wires from corrosion

Use Kinetic® Super Wire Stripper/Crimper (33-719) tool for proper crimping force and crimping angle

Permanent connection once crimped

Moisture resistant internal gel protects the splice when located in outdoor enclosures

UY conductor range of 22-26 AWG with a maximum insulation diameter of 0.060"

Cap pierces the conductor insulation when fully seated

Butt splice - both 2 ports are connected

Pack of 25 connectors
