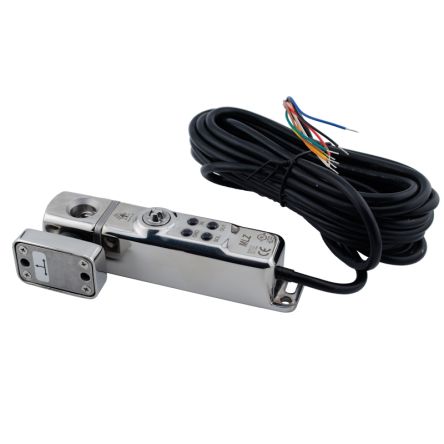

IDEM470001MLZ Safety Interlock Switch, Tongue Actuator Included, 316 Stainless Steel, Guard Lock Interlock

The IDEM MLZ power to unlock safety interlock switch features enhanced protection for personnel, keeping the machine guard door safety closed whilst the machinery is in motion. The power to unlock solenoid mechanism ensures the guard remains locked until the unlock signal is applied to the device. This device features 2 OSSD PNP outputs and 1 NO Auxiliary contact, 24V dc supply, and an operating temperature of -25 to +55 °C. The MLZ actuator is spring-loaded, with a bevelled tongue for greater tolerance to misalignment on 3-entry positions. The MLZ head also includes an adjustable spring ball catch for decreasing or increasing the latching force between 30N to 100N. The MLZ is ultra-compact, measuring just 145mm in length and 30mm in width, perfect for applications with limited space.

High locking force 4000N on 3 entry points

High Coded RFID actuator (re-teachable)

Can be connected in series for CAT4, SIL3, PLe

Fast troubleshooting due to LED indication located on the switch

Adjustable spring ball latch for altering the lateral retention force

Incredibly robust, suitable for all environments

High environmental protection rating of IP69K

Manual release point in case of loss of power to the machine

Ideal for use with hinge, sliding, and lift-off doors

Range of handle accessories for easier mounting and quicker installation

Include a rear escape function for applications that require a manual switch override from inside the guarded area

Silicone seal compression gaskets for improved hygiene by preventing liquid from accumulating behind the switch or actuator

Manufactured from 316 grade stainless steel

Mirror polished surface for enhanced hygiene benefits due to the smooth surface and minimal crevices which prevents bacterial accumulation and foodborne illnesses
