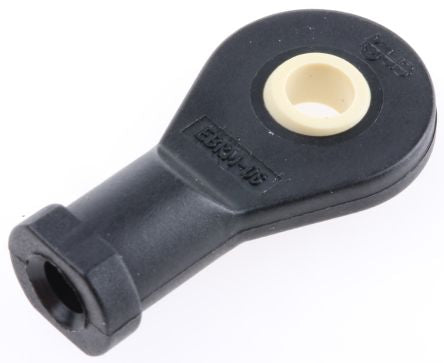

Igus EBRM-06 7124976

IGUSEBRM-06M6 Female Igumid G Rod End, 6mm Bore Size, 40.5mm Long , M6 Thread Size, Metric Thread Standard Female

B 6 mmBall Material iglidur W300Bore Size 6mmC1 4.4 mm
Mã nhà sản xuất
EBRM-06
Thương hiệu
IGUS
Quy cách đóng gói
1 cái
Mã kho
7124976
Liên hệ
📩 Liên hệ để có giá tốt: [email protected]

igus EBRM-06 – mắt nối ren igubal thuộc dòng igubal rod end with internal thread, EBRM, mm của igus (Đức). Thông số phân biệt mã: 6 mm, Right-hand thread, Ø d2 21 mm, iglidur W300, Normal thread. Vật liệu thân: igumid G. Nhiệt độ làm việc tối đa (dài hạn): 90 °C.

Báo giá theo số lượng và thời gian giao hàng, vui lòng liên hệ Chánh Vinh.

Thông số kỹ thuật

Manufacturer igus
Manufacturer Part No. EBRM-06
Series igubal rod end with internal thread, EBRM, mm
Type Rod End
Weight 3.9755 g
Thread Type inner thread
Thread Direction Right-hand thread
Dimensional Series E, according to DIN ISO 12240
Housing Material igumid G
Ball Material iglidur W300
Max. static transverse load, short-term 200 N
Max. static transverse load, long-term 100 N
Max. tightening torque, thread 1.5 Nm
Max. tightening torque through spherical ball 2.5 Nm
Maximum Pivot Angle 27 °
Max. static radial tensile stress, short-term 1500 N
Max. static radial tensile stress, long-term 750 N
Installation tolerance d1 E10
Recommended shaft tolerance h9
Recommended shaft roughness 0,4-0,5 µm
Shaft Diameter 6 mm
Ø d2 21 mm
Thread Size M06
Ø d4 11 mm
Ø d5 13 mm
Pitch 1 mm
C1 4.4 mm
B 6 mm
H1 30 mm
L1 12 mm
L2 40.5 mm
Width Across Flats SW11
Min. thread engagement 8 mm
Maximum Operating Temperature 90 °C
Max. temperature short 180 °C
Minimum Operating Temperature -40 °C

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare

Cùng dòng sản phẩm: Igus igubal rod end with internal thread (122 mã)

Các mã dưới đây cùng dòng Igus igubal rod end with internal thread, chỉ khác nhau ở các cột thông số trong bảng. Bấm mã để xem trang chi tiết.

Mã nhà sản xuấtThread SizeBBall MaterialThread DirectionGross weight
EBLM-04M045 mmiglidur W300Left-hand thread1.8 g
EBLM-04-JM045 mmiglidur JLeft-hand thread–
EBLM-04-J4M045 mmiglidur J4Left-hand thread–
EBLM-04-RM045 mmiglidur RLeft-hand thread–
EBLM-05M056 mmiglidur W300Left-hand thread3.133 g
EBLM-05-EKM056 mmStainless steelLeft-hand thread–
EBLM-05-JM056 mmiglidur JLeft-hand thread–
EBLM-05-J4M056 mmiglidur J4Left-hand thread–
EBLM-05-RM056 mmiglidur RLeft-hand thread–
EBLM-06M066 mmiglidur W300Left-hand thread3.99 g
EBLM-06-JM066 mmiglidur JLeft-hand thread–
EBLM-06-J4M066 mmiglidur J4Left-hand thread–
EBLM-06-RM066 mmiglidur RLeft-hand thread–
EBLM-08M088 mmiglidur W300Left-hand thread6.7 g
EBLM-08-EKM088 mmStainless steelLeft-hand thread–
EBLM-08-JM088 mmiglidur JLeft-hand thread–
EBLM-08-J4M088 mmiglidur J4Left-hand thread–
EBLM-08-RM088 mmiglidur RLeft-hand thread–
EBLM-10M109 mmiglidur W300Left-hand thread–
EBLM-10-EKM109 mmStainless steelLeft-hand thread–
EBLM-10-FM10x1.259 mmiglidur W300Left-hand thread11.2 g
EBLM-10-F-JM10x1.259 mmiglidur JLeft-hand thread–
EBLM-10-F-J4M10x1.259 mmiglidur J4Left-hand thread–
EBLM-10-F-RM10x1.259 mmiglidur RLeft-hand thread–
EBLM-10-JM109 mmiglidur JLeft-hand thread–
EBLM-10-J4M109 mmiglidur J4Left-hand thread–
EBLM-10-RM109 mmiglidur RLeft-hand thread–
EBLM-12M1210 mmiglidur W300Left-hand thread16.79 g
EBLM-12-FM12x1.2510 mmiglidur W300Left-hand thread17.1 g
EBLM-12-F-JM12x1.2510 mmiglidur JLeft-hand thread–
EBLM-12-F-J4M12x1.2510 mmiglidur J4Left-hand thread–
EBLM-12-F-RM12x1.2510 mmiglidur RLeft-hand thread–
EBLM-12-JM1210 mmiglidur JLeft-hand thread–
EBLM-12-J4M1210 mmiglidur J4Left-hand thread–
EBLM-12-RM1210 mmiglidur RLeft-hand thread–
EBLM-15M1412 mmiglidur W300Left-hand thread28.9 g
EBLM-15-JM1412 mmiglidur JLeft-hand thread–
EBLM-15-J4M1412 mmiglidur J4Left-hand thread–
EBLM-16M1613 mmiglidur W300Left-hand thread32.6 g
EBLM-16-FM16x1.513 mmiglidur W300Left-hand thread32.6 g
EBLM-16-F-JM16x1.513 mmiglidur JLeft-hand thread–
EBLM-16-F-J4M16x1.513 mmiglidur J4Left-hand thread–
EBLM-16-F-RM16x1.513 mmiglidur RLeft-hand thread–
EBLM-16-JM1613 mmiglidur JLeft-hand thread–
EBLM-16-J4M1613 mmiglidur J4Left-hand thread–
EBLM-16-RM1613 mmiglidur RLeft-hand thread–
EBLM-17M1614 mmiglidur W300Left-hand thread42.4 g
EBLM-17-FM16x1.514 mmiglidur W300Left-hand thread42.4 g
EBLM-17-F-JM16x1.514 mmiglidur JLeft-hand thread–
EBLM-17-F-J4M16x1.514 mmiglidur J4Left-hand thread–
EBLM-17-JM1614 mmiglidur JLeft-hand thread–
EBLM-17-J4M1614 mmiglidur J4Left-hand thread–
EBLM-20M20x1.516 mmiglidur W300Left-hand thread65.8 g
EBLM-20-JM20x1.516 mmiglidur JLeft-hand thread–
EBLM-20-J4M20x1.516 mmiglidur J4Left-hand thread–
EBLM-20-M20M20x2.516 mmiglidur W300Left-hand thread65.8 g
EBLM-20-M20-JM20x2.516 mmiglidur JLeft-hand thread–
EBLM-20-M20-J4M20x2.516 mmiglidur J4Left-hand thread–
EBLM-25M24x2.020 mmiglidur W300Left-hand thread125.9 g
EBLM-30M30x .022 mmiglidur W300Left-hand thread184.1 g
EBRM-04M045 mmiglidur W300Right-hand thread1.77 g
EBRM-04-EKM045 mmStainless steelRight-hand thread–
EBRM-04-JM045 mmiglidur JRight-hand thread–
EBRM-04-J4M045 mmiglidur J4Right-hand thread–
EBRM-04-RM045 mmiglidur RRight-hand thread–
EBRM-05M056 mmiglidur W300Right-hand thread–
EBRM-05-JM056 mmiglidur JRight-hand thread–
EBRM-05-J4M056 mmiglidur J4Right-hand thread–
EBRM-05-RM056 mmiglidur RRight-hand thread–
EBRM-06 đang xemM066 mmiglidur W300Right-hand thread–
EBRM-06-EKM066 mmStainless steelRight-hand thread–
EBRM-06-JM066 mmiglidur JRight-hand thread–
EBRM-06-J4M066 mmiglidur J4Right-hand thread–
EBRM-06-RM066 mmiglidur RRight-hand thread–
EBRM-08M088 mmiglidur W300Right-hand thread–
EBRM-08-EKM088 mmStainless steelRight-hand thread–
EBRM-08-JM088 mmiglidur JRight-hand thread–
EBRM-08-J4M088 mmiglidur J4Right-hand thread–
EBRM-08-RM088 mmiglidur RRight-hand thread–
EBRM-10M109 mmiglidur W300Right-hand thread–
EBRM-10-EKM109 mmStainless steelRight-hand thread–
EBRM-10-FM10x1.259 mmiglidur W300Right-hand thread11.2 g
EBRM-10-F-JM10x1.259 mmiglidur JRight-hand thread–
EBRM-10-F-J4M10x1.259 mmiglidur J4Right-hand thread–
EBRM-10-F-RM10x1.259 mmiglidur RRight-hand thread–
EBRM-10-JM109 mmiglidur JRight-hand thread–
EBRM-10-J4M109 mmiglidur J4Right-hand thread–
EBRM-10-RM109 mmiglidur RRight-hand thread–
EBRM-12M1210 mmiglidur W300Right-hand thread17 g
EBRM-12-EKM1210 mmStainless steelRight-hand thread–
EBRM-12-FM12x1.2510 mmiglidur W300Right-hand thread16.97 g
EBRM-12-F-JM12x1.2510 mmiglidur JRight-hand thread–
EBRM-12-F-J4M12x1.2510 mmiglidur J4Right-hand thread–
EBRM-12-F-RM12x1.2510 mmiglidur RRight-hand thread–
EBRM-12-JM1210 mmiglidur JRight-hand thread–
EBRM-12-J4M1210 mmiglidur J4Right-hand thread–
EBRM-12-RM1210 mmiglidur RRight-hand thread–
EBRM-15M1412 mmiglidur W300Right-hand thread28.9 g
EBRM-15-JM1412 mmiglidur JRight-hand thread–
EBRM-15-J4M1412 mmiglidur J4Right-hand thread–
EBRM-16M1613 mmiglidur W300Right-hand thread32.6 g
EBRM-16-FM16x1.513 mmiglidur W300Right-hand thread32.6 g
EBRM-16-F-JM16x1.513 mmiglidur JRight-hand thread–
EBRM-16-F-J4M16x1.513 mmiglidur J4Right-hand thread–
EBRM-16-F-RM16x1.513 mmiglidur RRight-hand thread–
EBRM-16-JM1613 mmiglidur JRight-hand thread–
EBRM-16-J4M1613 mmiglidur J4Right-hand thread–
EBRM-16-RM1613 mmiglidur RRight-hand thread–
EBRM-17M1614 mmiglidur W300Right-hand thread42.4 g
EBRM-17-FM16x1.514 mmiglidur W300Right-hand thread42.4 g
EBRM-17-F-JM16x1.514 mmiglidur JRight-hand thread–
EBRM-17-F-J4M16x1.514 mmiglidur J4Right-hand thread–
EBRM-17-JM1614 mmiglidur JRight-hand thread–
EBRM-17-J4M1614 mmiglidur J4Right-hand thread–
EBRM-20M20x1.516 mmiglidur W300Right-hand thread65.8 g
EBRM-20-JM20x1.516 mmiglidur JRight-hand thread–
EBRM-20-J4M20x1.516 mmiglidur J4Right-hand thread–
EBRM-20-M20M20x2.516 mmiglidur W300Right-hand thread65.8 g
EBRM-20-M20-JM20x2.516 mmiglidur JRight-hand thread–
EBRM-20-M20-J4M20x2.516 mmiglidur J4Right-hand thread–
EBRM-25M24x2.020 mmiglidur W300Right-hand thread125.9 g
EBRM-30M30x .022 mmiglidur W300Right-hand thread184.1 g
