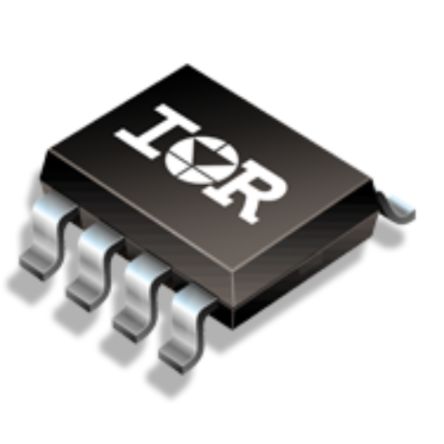

INFINEONIR2302STRPBFIR2302STRPBF 1 8-Pin, SOIC

Kiểu lắp Surface MountNumber of Drivers 1Pin Count 8Topology Half Bridge
Mã nhà sản xuất
IR2302STRPBF
Thương hiệu
Quy cách đóng gói
10 cái (băng liên tục)
Mã kho
2177191
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Infineon 600 V half bridge driver IC with typical 0.2 A source and 0.35 A sink currents in 8 Lead SOIC package for IGBTs and MOSFETs. Also available in 8 Lead PDIP.

Floating channel designed for bootstrap operation

Fully operational to +600 V

Tolerant to negative transient voltage

dV/dt immune

Gate drive supply range from 5 to 20 V

Undervoltage lockout for both channels

3.3 V, 5 V and 15 V input logic compatible

Cross-conduction prevention logic

Matched propagation delay for both channels

High side output in phase with IN input

Logic and power ground +/- 5 V offset

Internal 540ns dead-time

Lower di/dt gate driver for better noise immunity

Shut down input turns off both channels

THÔNG SỐ KỸ THUẬT
Manufacturer Infineon
Manufacturer Part No. IR2302STRPBF
Pin Count 8
Package Type SOIC
Topology Half Bridge
Number of Drivers 1
Mounting Type Surface Mount

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
