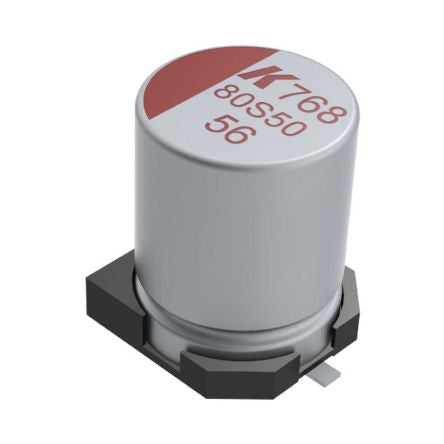

KEMETA768MS157M1HLAE024150μF Aluminium Polymer Capacitor 50 V dc, 57.5 V dc, Surface Mount - A768MS157M1HLAE024

Điện dung 150µFĐường kính 10mmDielectric Material Family AluminiumKhoảng cách chân 3.2mm
Mã nhà sản xuất
A768MS157M1HLAE024
Thương hiệu
Quy cách đóng gói
Cuộn 500 cái
Mã kho
2095415
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The KEMET surface mount aluminium polymer capacitor operates on 50V DC and have capacitance range of 150uF with capacitance tolerance of ±20% .It has maximum operating temperature of 125 °C and ripple current 2,500mA. Its dimensions are 10x12.2mm in size.

Capacitance 150uF

Voltage Rating 50V

Ripple Current 2,500mA

Dimensions 10x12.2mm

Tolerance 20%

THÔNG SỐ KỸ THUẬT
Manufacturer KEMET
Manufacturer Part No. A768MS157M1HLAE024
Technology Polymer
Capacitance 150µF
Voltage 50 V dc, 57.5V dc
Dielectric Material Family Aluminium
Mounting Type Surface Mount
Equivalent Series Resistance 24mΩ
Lead Pitch 3.2mm
Tolerance ±20%
Length 12.2mm
Maximum Operating Temperature +125°C
Dimensions 10 (Dia) x 12.2mm
Series A768
Diameter 10mm
Lifetime 2000h
Ripple Current 2150mA
Minimum Operating Temperature -55°C
Leakage Current 1500 µA

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
