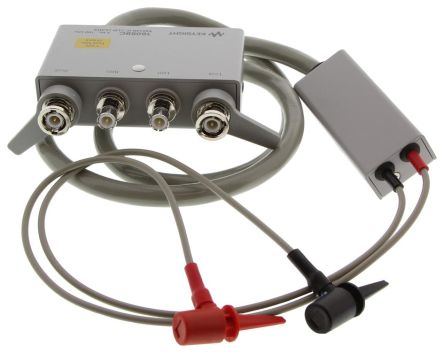

KEYSIGHT TECHNOLOGIES16089CLCR Meter Accessory for Use with E4980A/AL, E4981A, E4990A

The Keysight Technologies 16089C this test fixture makes it possible to measure odd-shaped components that cannot be measured with conventional fixtures. It is equipped with two insulated Kelvin clips.

Open and short compensations are recommended before measurement

For open compensation, do not connect the Kelvin clips to anything

Short compensation is performed by connecting the Kelvin clips together

After performing open and short compensations, the DUT is held with the Kelvin clips
