KEYSIGHT TECHNOLOGIESD9010POWAOscilloscope Analysis Oscilloscope Software for Use with Infiniium Series

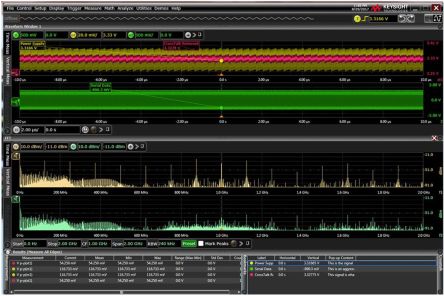

The Keysight Technologies Power Integrity Analysis with N7020A and N7024A Power Rail Probes. The analysis application lets users define a DC supply as either a victim of or an aggressor to, other periodic transitioning signals and quantifies the amount of adverse interaction involved. In this way, users can see what their DC supply and/or digital signals would look like if they were immune to the negative effects of each other. With this insight, users can make informed decisions about what, if any, the next steps they would take to clean up their DC supplies.

Large offset range

Low DC loading

High bandwidth
