KEYSIGHT TECHNOLOGIESD9010PWRAOscilloscope Analysis Oscilloscope Software for Use with Infiniium Series

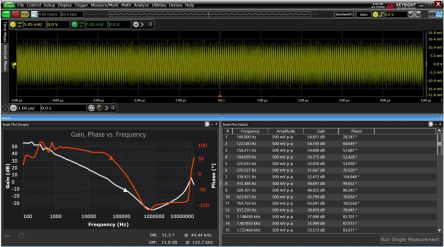

The Keysight Technologies Power supply analysis software (input, switching, output, SOA) for Infiniium oscilloscopes. The broad range of automated power supply characterization measurements includes critical frequency response measurements such as power supply rejection ratio (PSRR) and control loop response (Bode plots). The Infiniium MXR-Series and EXR-Series oscilloscopes also support multi-channel waveform mask testing for detailed analysis of supply system turn-on/turn-off testing of up to 8 power supply lines.

Current harmonics analysis

Switching device analysis

Modulation analysis

Note

Manufacturer's Warranty
