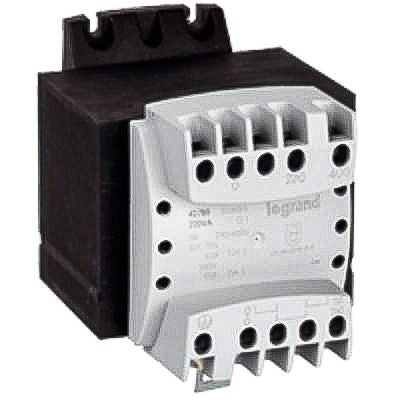

LEGRAND100VA DIN Rail & Panel Mount Transformer, 230 V ac, 400 Primary 1 x, 115 V ac, 230 V ac Secondary

Maximum Operating Frequency 60HzMinimum Operating Frequency 50HzKiểu lắp Chassis MountNumber of Outputs 1
Mã nhà sản xuất
0 427 87
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
4229665
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Compact Legrand transformers

Range of compact transformers for mounting onto chassis or omega rail up to160 VA using 2 clips (stock no. 423-2201).

All higher values are compatible with Stock no. 620-3592

All models are fitted with a top cover.

Standards

IEC / EN61558-2-6 (12 and 24 V models) IEC / EN61558-2-4 (Other models)

Laminated

THÔNG SỐ KỸ THUẬT
Primary Voltage Rating 230 V ac, 400
Secondary Voltage Rating 115 V ac, 230 V ac
Power Rating 100VA
Mounting Type Chassis Mount, Top Hat Rail
Number of Outputs 1
Length 98mm
Width 84mm
Depth 86mm
Dimensions 98 x 84 x 86mm
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
Maximum Temperature +35°C
Weight 1.6kg
