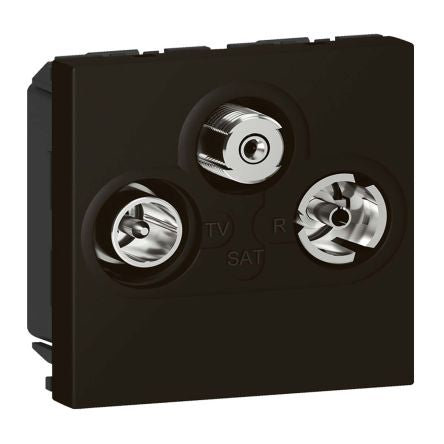

LEGRAND079186LR, SAT, TV Black Female 3 Outlet Socket, Wall Mount
TV-R-SAT Mosaic FM and DAB socket + 2 modules - matt black
TV sockets with multiple outputs
Distribution of TV and radio signals to all operators according to the requirements of the building and town planning code R 111-14 regulating collective buildings
Star installation according to the requirements of standard NF C 15-100 and of guide UTE C 90483
TV-R-SAT sockets
2 modules
Radio Fm + DAB +
Matte Black
Features and Benefits:
Sockets suitable for terrestrial reception TNT, satellite or cable network
Compatible with Ultra High Definition television
Shielded star sockets Class A, compatible 4G Lte
17 VATC coaxial cable recommended
Ability to view the connection through the mechanism
Complies with standard EN 50083 and European Directive EM 50083-2
Low attenuation <1.5 dB
Male and female TV connectors Ø 9.5 mm, Sat connector type "F"
TV: 5-68 and 230 - 862 MHz
R: Fm 87.5 - 108 MHz / DAB 174 - 223 MHz
Sat: 950 - 2400 MHz
The Legrand MosaicTM Prises TV/R/SAT allows reception of TV, Radio and Satellite signals. Compatible with UHD television. Class A shielded star plug, 4G Lte compatible. Recommended cable 17/19 VATC Single cable inlet Can be fitted flush-mounted in a box with a minimum depth of 40 mm. To be fitted with a finishing plate.
Impact resistance: IK 04
Penetration of solid / liquid bodies: IP 21
Cable resistance: 120 N
