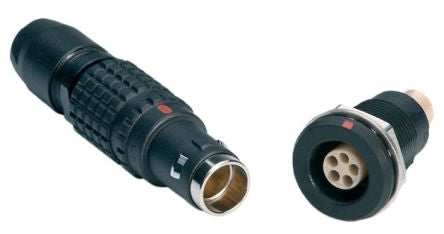

LEMOEGG.2T.310.CLL2T Series M15 Male Panel Mount Circular Connector, 10 contacts Socket

Giắc tròn công nghiệp 2T, 10, Socket

Dòng sản phẩm 2TSố chân 10Phích / ổ SocketChân đực / cái MaleKiểu lắp Panel Mount
Mã nhà sản xuất
EGG.2T.310.CLL
Thương hiệu
Quy cách đóng gói
1 túi
Mã kho
1442743
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

The LEMO T Series range are small diameter waterproof Push-Pull multipole connectors with an index protection of IP68.T series connectors have been specifically designed for outdoor applications. They include an inner sleeve and seals to prevent penetration of solids or liquids. The T Series connectors feature a push-pull self-latching system, mechanical key with multiple keys to avoid cross-mating, and 360° full EMC shielding.The T connector outer shell is available in standard LEMO matt chrome or black-chrome finish for use in defence systems such as aircraft communications, land vehicles, night vision equipment, simulation or personal battle equipment. These products can be used for automated test equipment, for electronic test and other applications where the environmental conditions require ruggedised equipment. The connector is available with solder, crimp or print contacts.

Multipole 2 to 32 contacts

Push-Pull self-latching 5 sizes 4 keying options

Temp. range -55°C to 200°C

Compatible with existing b sockets

Black-chrome plated brass and plastic outershell available

Solder, crimp or print contacts

IP68

For cable ø 1 to 10.5 mm

IP68 mated

Compatible with existing B sockets

Push-Pull self-latching system

Same mounting hole as B sockets

Mechanical key (FGG) with multiple keys

Black-chrome plated brass and plastic outershell availableto avoid cross-mating

Multipole types 2 to 32 contacts

High packing density for space savings

For cables 1.0 up to 10.5 mm

360° shielding for full EMC shielding

Solder crimp or print contacts

T series connectors have been specifically designed for outdoor applications. They include an inner sleeve and seals to pre-vent penetration of solids or liquids.This series is watertight when mated to give a protection index of IP68 as per IEC 60529 standard.

THÔNG SỐ KỸ THUẬT
Number of Contacts 10
Plug/Socket Socket
Mounting Type Panel Mount
Connector Size M15
Termination Method Solder
Current Rating 8.0A
IP Rating IP66, IP68
Contact Gender Male
Voltage Rating 30.0 V, 42.0 V
Mating Type Push-Pull
Body Orientation Straight
Series 2T
Housing Material Brass
Pole Format 10P
Contact Plating Nickel
Contact Material Bronze
