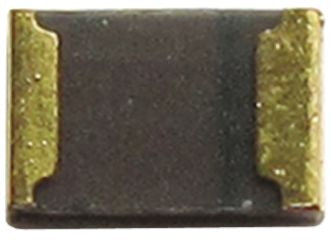

LITTELFUSEPICOSMDC035S-20.35A Surface Mount Resettable Fuse, 6V dc

Dòng định mức 0.35 AHold Current 0.35 ADòng tối đa 100 AMaximum Resistance 1.4Ω
Mã nhà sản xuất
PICOSMDC035S-2
Thương hiệu
Quy cách đóng gói
Gói 10 cái
Mã kho
7127470
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Trip Current 750mA
Voltage Rating 6 V dc
Time to Trip 0.2s
Hold Current 0.35 A
Maximum Current 100 A
Length 2.2mm
Height 0.68mm
Width 1.5mm
Minimum Resistance 0.35Ω
Maximum Resistance 1.4Ω
Power Dissipation 0.5W
Maximum Operating Temperature +85°C
Operating Temperature Range Maximum of +85 °C
Dimensions 2.2 x 1.5 x 0.68mm
