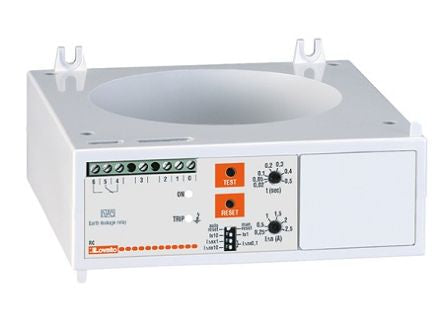

LOVATO31RC110415Earth Leakage Relay, 50 Hz, 60 Hz Frequency, 0.25 → 2.5A Leakage, SPDT Output

Breaker features current transformer / with 1 operation thresholdContacts configuration SPDTEAN code 8013975064269Hole diameter 110mm
Mã nhà sản xuất
31RC110415
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

The Lovato 31RC series of compact earth leakage relay. This relay features configurable automatic or manual resetting with compact housing for fixing on panel mounting plate.

It offers IP20 degree of protection on terminals

The power frequency withstand voltage is 2.5kV for 60 seconds and maximum power consumption is 3VAThe rated voltage is 110 V to 415

The operating temperature is from -10°C to 60°C

Green power LED indicator (ON), Red relay tripped LED indicator (TRIP)

It has front TEST and RESET buttons
