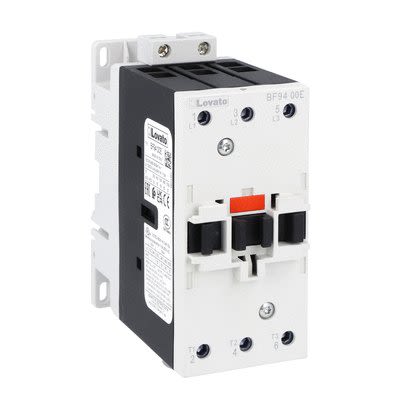

LOVATOBF9400E230BF BF94 Contactor, 100 → 250 V ac/dc Coil, 3-Pole, 94 A, 55 kW, 3 NO, 440 V

Contacts configuration NO x3Control voltage 100...250V AC / 100...250V DCEAN code 8013975243787Insulation voltage 690V
Mã nhà sản xuất
BF9400E230
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

The Lovato Contactor is a 3 pole power contactor. This contactor has 115 A IEC conventional free air thermal current ITH and 100 to 250 VAC or VDC coil voltage. This device has screw or DIN rail 35 mm mounting. This contactor has minimum 25 Hz and maximum 400 Hz operational frequency with 3600 cycles per hours mechanical operation. It supports power terminal protection according to IEC and EN 60529 IP20.

EMC compatibility

3000 meter maximum altitude

Electrical life is 1100000 cycles

Mechanical life is 15000000 cycles

Power dissipation per pole is 7.9 W at thermal current
