MARTINDALEMARPC104/32MARPC104/32 Socket Tester 32A CAT III 300 V, Model PC104/32

Dòng định mức 32AKiểu màn hình Front Panel✓ Earth Loop Impedance TestNumber of Pins 4
Mã nhà sản xuất
MARPC104/32
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
7762008
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

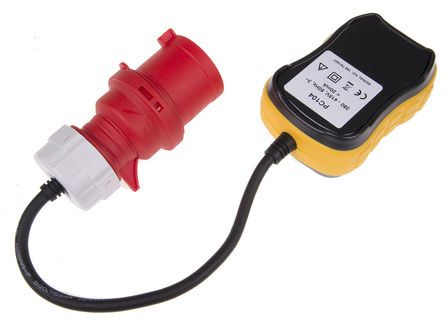

PC104 3 Phase Industrial Socket Tester

The PC104 is a 3 phase socket tester designed to quickly check for the presence of phase, phase sequence and PE in 4 pin, 16A, 32A and 63A sockets.

This device includes a four-pin socket for connection to compatible sockets which is attached via a cable to the main body of the socket tester

Once it's connected up the device will evaluate phase presence, phase sequence and PE presence and display the results as coloured LED indicators

The device includes a handy guide on the front that shows the different possible LED indications

L1, L2 and L3 are present

L1, L2 and L3 are missing, PE present

L1 error

L2 error

L3 error

PE error

THÔNG SỐ KỸ THUẬT
Current Rating 32A
Earth Loop Impedance Test Yes
Number of Pins 4
Wiring Check Yes
Display Type Front Panel
Safety Category CAT III 300 V
Power Source Mains
Dimensions 131 x 94 x 54mm
Weight 292g
Height 54mm
Width 94mm
Length 131mm
Model Number p PC104/32
Safety Category Voltage 300V
Safety Category Level CAT III
