MAXON367661DC Motor Controller, Voltage Control, 8 → 24 V dc, 3 A, Socket Mount

Compatible Motor Type Brushless DC MotorControl Input VoltageDòng định mức 0.125Mounting Style Socket Mount
Mã nhà sản xuất
367661
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
8332813
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

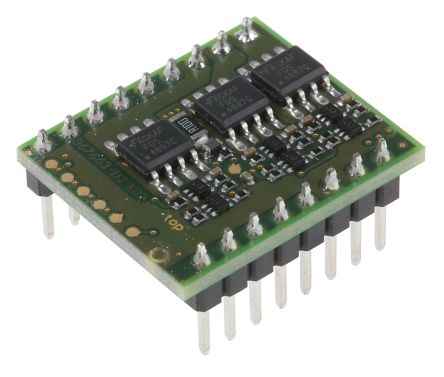

DEC 24/2 Digital Brushless Amplifier

The DEC 24/2 digital amplifier is a small 1-quadrant digital controller for the control of brushless EC motors up to 48W. The EC motor being used must be equipped with digital hall sensors.

Digital speed control

Open loop control can be preset by a digital signal

Adjustable maximum current limitation

DC Drives - Brushless

DC Drives - Brushless

THÔNG SỐ KỸ THUẬT
Supply Voltage 8 → 24 V dc
Current Rating 0.125
Voltage Rating 24 V dc
Compatible Motor Type Brushless DC Motor
Control Input Voltage
Mounting Style Socket Mount
Length 24.2mm
Width 20.38mm
Depth 4.14mm
Dimensions 24.2 x 20.38 x 4.14 mm
Operating Temperature Range -10 → +45 °C
