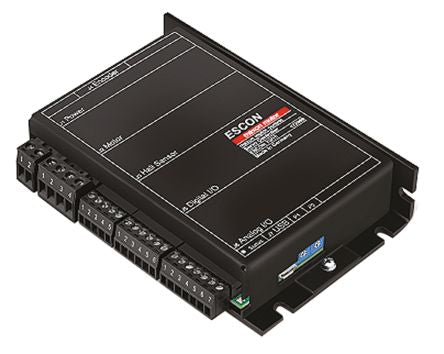

MAXON422969DC Motor Controller, Voltage Control, 10 → 70 V dc, 30 A, Panel Mount

Compatible Motor Type Brushed DC MotorControl Input VoltageDòng định mức 30 AMounting Style Panel Mount
Mã nhà sản xuất
422969
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
8332822
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

ESCON DC Servo Controllers

A range of Escon controllers from Maxon that are small but powerful 4- Quadrant PWM servo controllers for the highly efficient control of permanent magnet activated DC motors. The controllers are reliable and are protected against overcurrent, under and overvoltage, excess temperature, short circuits in the motor cable, voltage transients and can also help protect both load and motor with protected digital inputs and outputs and an adjustable current limitation. The brushless DC motors have various operating modes which include speed controller (closed loop) which compares the actual speed signal with an applied set value. In case of deviation, the speed is dynamically readjusted, and speed controller (open loop) which feeds the motor with a voltage proportional to the applied speed set value.

DC Drives - Brushless

Note

They have a wide range of functionalities with digital and analogue inputs and outputs and are configured over the USB interface using the graphic user interface "ESCON Studio" for Windows PCs.

DC Drives - Brushless

THÔNG SỐ KỸ THUẬT
Supply Voltage 10 → 70 V dc
Current Rating 30 A
Voltage Rating 70 V dc
Compatible Motor Type Brushed DC Motor, Brushless DC Motor
Control Input Voltage
Mounting Style Panel Mount
Length 125mm
Width 78.5mm
Depth 27mm
Dimensions 125 x 78.5 x 27 mm
Operating Temperature Range -30 → +45 °C
