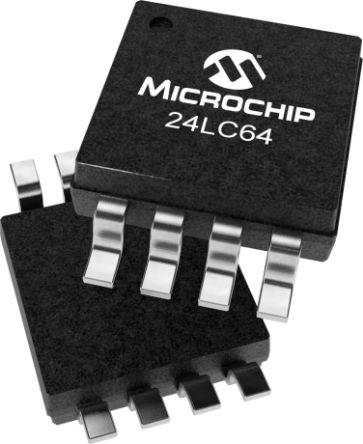

MICROCHIP24LC64-I/MS64kbit Serial EEPROM Memory 8-Pin MSOP Serial-I2C

Data Retention 200yrInterface Type Serial-I2CMaximum Operating Supply Voltage 5.5VMaximum Random Access Time 900ns
Mã nhà sản xuất
24LC64-I/MS
Thương hiệu
Quy cách đóng gói
50 cái (băng liên tục)
Mã kho
2153900
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Microchip 64kbit serial electrically erasable PROM. It is organized as a single block of 8K x 8-bit memory with a 2-wire serial interface. The low voltage design permits operation down to 1.7V.

Factory programming available

Pb-Free and RoHS compliant

THÔNG SỐ KỸ THUẬT
Manufacturer Microchip
Manufacturer Part No. 24LC64-I/MS
Memory Size 64kbit
Interface Type Serial-I2C
Package Type MSOP
Mounting Type Surface Mount
Pin Count 8
Organisation 8K x 8 bit
Minimum Operating Supply Voltage 2.5V
Maximum Operating Supply Voltage 5.5V
Programming Voltage 2.5 → 5.5 V
Number of Bits per Word 8bit
Dimensions 3 x 3 x 0.85mm
Automotive Standard AEC-Q100
Maximum Operating Temperature +85°C
Number of Words 8k
Maximum Random Access Time 900ns
Minimum Operating Temperature -40°C
Data Retention 200yr

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
