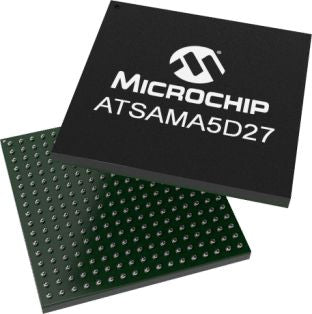

MICROCHIPATSAMA5D27C-CUATSAMA5D27C-CU, ARM Cortex A5 Microprocessor SAMA5D2 32bit ARM 500MHz 289-Pin LFBGA

Device Core ARM Cortex A5Family Name SAMA5D2I/O Voltage 1.65 → 3.6 VInstruction Set Architecture ARM
Mã nhà sản xuất
ATSAMA5D27C-CU
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1656443
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The SAMA5D2 series is a high-performance, ultra-low-power ARM Cortex-A5 processor-based MPU. The Cortex-A5 runs up to 500MHz and features the ARM NEON SIMD engine, a 128KB L2 cache and a floating-point unit. It supports multiple memories, including DDR3, LPDDR3 and QSPI Flash. It integrates powerful peripherals for connectivity: EMAC, up to 3 HS USB ports, up to 2 CAN ports, up to 2 SDIO/SD/MMC, up to 10 UARTs, and for user interface applications: TFT LCD controller, touch controllers, class D amplifier, audio PLL, and a CMOS sensor (camera) interface.

Embedded audio subsystem

0.8mm ball pitch package reduces PCB design complexity

Simple power management scheme

4-layer PCB

Ultra-Low Power Consumption:

Ultra-low-power architecture for extensive battery life

<200uA retention mode with fast wake-up

5uA in backup mode

New backup mode with DDR self-refresh

THÔNG SỐ KỸ THUẬT
Manufacturer Microchip
Manufacturer Part No. ATSAMA5D27C-CU
Family Name SAMA5D2
Device Core ARM Cortex A5
Data Bus Width 32bit
Instruction Set Architecture ARM
Maximum Frequency 500MHz
I/O Voltage 1.65 → 3.6 V
Mounting Type Surface Mount
Package Type LFBGA
Pin Count 289
Typical Operating Supply Voltage 1.2 V, 1.35 V, 1.5 V, 1.8 V, 3.3 V
Dimensions 14 x 14 x 1.03mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
