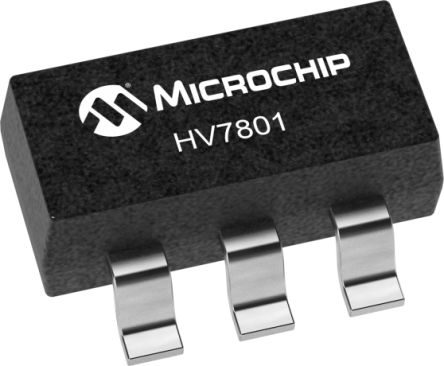

MICROCHIPHV7801K1-GHV7801K1-G, Current Monitor 5-Pin, SOT-23

Kiểu lắp Surface MountOffset Voltage 450VPin Count 5Quiescent Current 0.05mA
Mã nhà sản xuất
HV7801K1-G
Thương hiệu
Quy cách đóng gói
Gói 25 cái
Mã kho
2097653
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Microchip HV7801K1-G high side current monitor IC transfers a high-side current measurement voltage to its ground referenced output with a voltage gain of five. The measurement voltage typically originates at a current sense resistor which is located in a "high side" circuit, such as the positive supply line. This monitor IC features a very wide input voltage range, high accuracy of transfer ratio, small size, low component count, low power consumption, ease of use, and low cost. Offline, battery, and portable applications can be served equally well due to the wide input voltage range and the low quiescent current.

Voltage output device

Max VSENSE 500mV

Fast rise and fall time, 700ns to 2.0μs

Maximum quiescent current 50μA

THÔNG SỐ KỸ THUẬT
Manufacturer Microchip
Manufacturer Part No. HV7801K1-G
Offset Voltage 450V
Quiescent Current 0.05mA
Package Type SOT-23
Pin Count 5
Mounting Type Surface Mount

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
