MICROCHIPMCP4728EVMCP4728EV 12-bit DAC Development Kit for MCP4728

Converter Type DACFeatured Device MCP4728Kit Classification Development KitĐộ phân giải 12-bit
Mã nhà sản xuất
MCP4728EV
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
6872725
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

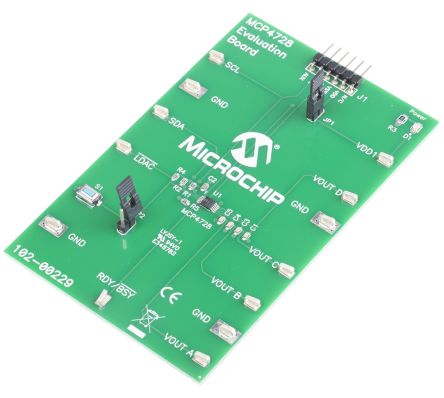

Evaluation Board for MCP4728 Quad 12-Bit Digital to Analogue Converter

This Evaluation Board is a tool for quick and easy evaluation of the MCP4728 4-channel 12-bit DAC device. It contains the MCP4728 device and connection pins for the PICkit™ Serial Analyzer. Simply connect the board to the Serial Analyzer and type the DAC input data into the Serial Analyzer's PC GUI program. The Serial Analyzer will then send the user's data to the DAC device automatically. The new DAC's analogue outputs will be available immediately at the DAC output pins.

12-Bit Voltage Output DAC with four buffered outputs

On-board EEPROM for DAC Codes and I²C address bits

Internal or External Voltage Reference selection

Output Voltage Range: using internal VREF (2.048V): 0.000 to 2.048V with Gain=1, 0.000 to 4.096V with Gain=2

Output Voltage Range: using external VREF (VDD): 0.000 to VDD

±0.2LSB DNL (typical)

Fast Settling Time: 6μs (typical)

Normal or Power-Down Mode

Low power consumption

Voltage range: +2.7 to +5.5Vdc

I²C serial interface: address bits: user programmable to EEPROM

I²C speed: standard (100kbps), Fast (400kbps) and High Speed (3.4Mbps) modes

10-pin MSOP package

Extended temperature range: -40°C to +125°C

Note

The PICkit™ Serial Analyzer is NOT included, but is sold separately.

Digital to Analogue Converters - Microchip

THÔNG SỐ KỸ THUẬT
Converter Type DAC
Featured Device MCP4728
Kit Classification Development Kit
Resolution 12-bit
