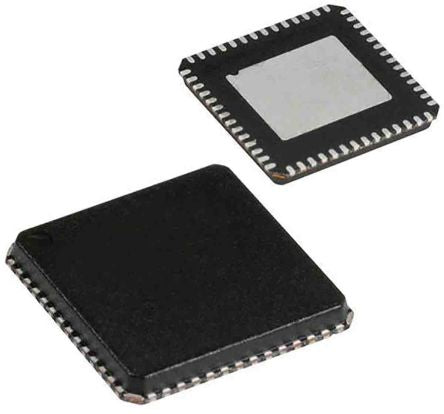

Microchip MIC33M656-SAYMP-TR 1962329

MICROCHIPMIC33M656-SAYMP-TRMIC33M656-SAYMP-TRStep-Down Switching Regulator, 1-Channel 6A 53-Pin, QFN

Line Regulation 0.06 (Typ.) %Load Regulation 0.2 (Typ.) %Maximum Input Voltage 5.5VMaximum Output Current 6A
Mã nhà sản xuất
MIC33M656-SAYMP-TR
Thương hiệu
MICROCHIP
Quy cách đóng gói
Gói 2 cái
Mã kho
1962329
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Microchip Technology's 6A power module buck converter with hyper light load is an I2C programmable, high-efficiency, low-voltage input, synchronous step-down regulator power module with integrated inductor. The 2.4V to 5.5V input voltage range, low shutdown and quiescent current make the ideal for single-cell Li-ion battery-powered application.

Ultra-Fast Transient Response

Safe start-up with pre-biased output

THÔNG SỐ KỸ THUẬT
Manufacturer Microchip
Manufacturer Part No. MIC33M656-SAYMP-TR
Maximum Output Current 6A
Maximum Output Voltage 1.28V
Minimum Output Voltage 0.6V
Minimum Input Voltage 2.4V
Maximum Input Voltage 5.5V
Output Type Fixed
Mounting Type Surface Mount
Number of Outputs 1
Maximum Switching Frequency 2.2 (Typ.) MHz
Pin Count 53
Package Type QFN
Line Regulation 0.06 (Typ.) %
Load Regulation 0.2 (Typ.) %
Minimum Operating Temperature -40°C
Length 10mm
Width 6mm
Maximum Operating Temperature +125°C
Height 3mm
Dimensions 10 x 6 x 3mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare
📄 Datasheet MICROCHIP MIC33M656-SAYMP-TR (PDF)
