MICROCHIPMIC5203-5.0YM5-TRMIC5203-5.0YM5-TR, 1, Regulator 80mA 5-Pin, SOT-23

Accuracy 3%Maximum Output Current 80mAKiểu lắp Surface MountNumber of Outputs 1
Mã nhà sản xuất
MIC5203-5.0YM5-TR
Thương hiệu
Quy cách đóng gói
50 cái (băng liên tục)
Mã kho
2097695
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

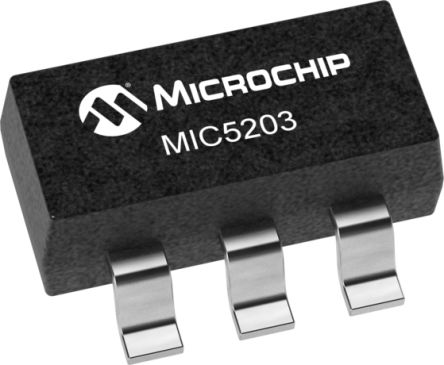

The Microchip MIC5203-5.0YM5-TR is a μCap 80mA linear voltage regulator with very low dropout voltage and very low ground current , offering better than 3% initial accuracy with a logic-compatible enable input. The μCap regulator design is optimized to work with low-value, low-cost ceramic capacitors. The outputs typically require only 0.47μF of output capacitance for stability. Designed especially for handheld, battery-powered devices, the MIC5203-5.0YM5-TR can be controlled by a CMOS- or TTL-compatible logic signal. When disabled, power consumption drops nearly to zero. If on-off control is not required, the enable pin may be tied to the input for 3-terminal operation. The ground current of the MIC5203 increases only slightly in dropout, further prolonging battery life. Key features include current limiting, over-temperature shutdown, and protection against reversed

Current and thermal limiting

Reversed input polarity protection

Zero off-mode current

Logic-controlled shutdown

Stability with low-ESR ceramic capacitors

THÔNG SỐ KỸ THUẬT
Manufacturer Microchip
Manufacturer Part No. MIC5203-5.0YM5-TR
Maximum Output Current 80mA
Output Voltage 5V
Number of Outputs 1
Accuracy 3%
Mounting Type Surface Mount
Package Type SOT-23
Pin Count 5
Output Type Fixed

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
