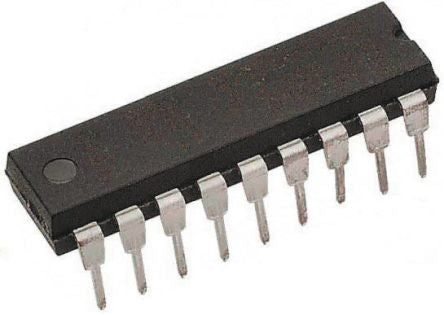

MICROCHIPPIC16F1826-I/PPIC16F1826-I/P, 8bit PIC Microcontroller, PIC16F, 32MHz, 2K x 14 words, 256 B Flash, 18-Pin PDIP

ADCs 12 x 10 bitDevice Core PICFamily Name PIC16FInstruction Set Architecture RISC
Mã nhà sản xuất
PIC16F1826-I/P
Thương hiệu
Quy cách đóng gói
Gói 5 cái
Mã kho
2043890
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

PIC16F1826/1827 8-Bit Flash Microcontrollers

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip's PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F1826/1827 family of microcontrollers is based upon Microchip's enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, up to 7 Kbytes program memory, up to 384 bytes RAM and Data EEPROM of 256 bytes. On board is a configurable oscillator with ±1% accuracy.

Microcontroller Features

32 MHz Max. CPU Speed

49 Instructions

16 Level Hardware Stack

32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz

16 I/O Pins

nanoWatt XLP Technology

Power-On Reset (POR)

Power-Up Timer (PWRT)

Oscillator Start-Up Timer (OST)

Brown-Out Reset (BOR)

Extended Watchdog Timer (WDT)

Enhanced Low-Voltage Programming (LVP)

In-Circuit Serial Programming (ICSP)

In-Circuit Debug (ICD)

Peripherals

12 Channel 10-bit Analogue to Digital Converter (ADC)

12 Channel mTouchTM Capacitive Sensor Module

Two Capture/Compare/PWM (CCP) Modules – PIC16F1827 Only

Enhanced Capture/Compare/PWM (ECCP) Modules – PIC16F1826 x 1, PIC16F1827 x 2

Two Comparators

8-bit Timers – PIC16F1826 x 2, PIC16F1827 x 4

One 16-bit Timer

Master Synchronous Serial Port (MSSP) with SPI and I2C – PIC16F1826 x 1, PIC16F1827 x 2

Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

Fixed Voltage Reference (FVR)

Data Signal Modulator Module

SR Latch

THÔNG SỐ KỸ THUẬT
Manufacturer Microchip
Manufacturer Part No. PIC16F1826-I/P
Family Name PIC16F
Package Type PDIP
Mounting Type Through Hole
Pin Count 18
Device Core PIC
Data Bus Width 8bit
Program Memory Size 2K x 14 words, 256 B
Maximum Frequency 32MHz
RAM Size 256 B
USB Channels 0
Number of PWM Units 1
Number of SPI Channels 1
Number of USART Channels 1
Number of I2C Channels 1
Typical Operating Supply Voltage 1.8 → 5.5 V
Number of UART Channels 0
Number of CAN Channels 0
Maximum Operating Temperature +85°C
Number of Ethernet Channels 0
ADCs 12 x 10 bit
Number of PCI Channels 0
Program Memory Type Flash
Instruction Set Architecture RISC
Number of LIN Channels 0
Length 23.37mm
Minimum Operating Temperature -40°C
Number of ADC Units 1
Width 0.28in
Height 4.95mm
Pulse Width Modulation 1 (ECCP Full Bridge)
Dimensions 0.92 x 0.28 x 0.195in
