MIDASMDT0700ESH-HDMIMDT0700ESH-HDMI TFT LCD Colour Display, 7in, 1024 x 768

Diagonal Display Size 7inInterface Type HDMIĐộ phân giải 1024 x 768Touch Screen Không
Mã nhà sản xuất
MDT0700ESH-HDMI
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2256216
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

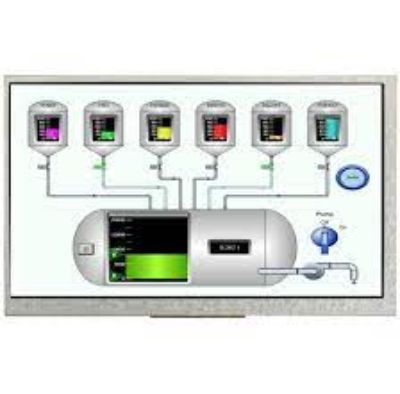

The Midas MDT0700ESH-HDMI TFT is a TN transmissive type colour active-matrix LCD with 7.0-inch diagonal active area and a resolution of 1024 x 600. It has a landscape orientation with HDMI A input. The pinout/mounting is optimised for the Raspberry Pi and OKDO ROCK. Previously called MCT070HDMI-B. This product is compatible with Raspberry Pi, OKDO ROCK and other SBCs with HDMI outputs (tested on vanilla Linux/Windows Operating systems).

Features Summary:

•This product is compatible with Raspberry Pi, OKDO ROCK and other SBCs with HDMI outputs

•Can be used with Midas MCIB-HDMI/HDMI interconnect board

•Size (inches): 7.0"

•Resolution: 1024x600

•Module Dimensions (mm): 164.8 x 99.8 x 24.8

•Active Area (mm): 154.21 x 85.92

•Interface: HDMI (display)

•Brightness (cd/m2): 600

•Display Technology: TN

•Operating Temperature (°C): -20°C to +70°C

•Orientation: Landscape

.THÔNG SỐ KỸ THUẬT:
Diagonal Display Size 7in
Interface Type HDMI
Resolution 1024 x 768
Touch Screen No
Viewing Area Dimensions 154.2144 x 85.92mm
