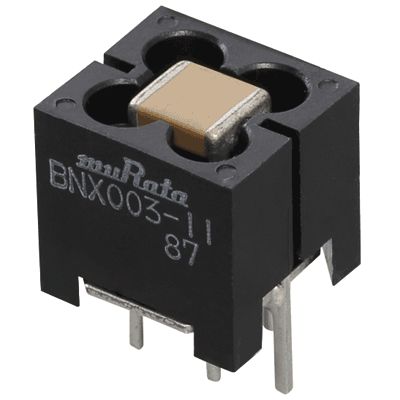

MURATABNX003-11BNX 10A 150 V dc 5MHz → 1GHz, Through Hole EMI Filter, Pin

Bộ lọc nguồn EMI 10A, 150V dc, Through Hole

Dòng tối đa 10AĐiện áp tối đa 150V dcKiểu lắp Through HoleKiểu đấu nối Pin
Mã nhà sản xuất
BNX003-11
Thương hiệu
Quy cách đóng gói
5 cái (băng liên tục)
Mã kho
2166040
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Murata BNX series 150 V EMI suppression filter. The block type "EMIFIL" BNX series incorporates through-type capacitor, monolithic chip capacitors and bead. The BNX series has high performance and used in DC power circuits.

The filter enables obtaining high insertion loss in wide frequency ranges from 0.5MHz to 1GHz

Effective for impulse noise such as electrostatic discharge or spike noise

There are no connection routes in the current circuits, thus ensuring highly reliable performance.

THÔNG SỐ KỸ THUẬT
Manufacturer Murata
Manufacturer Part No. BNX003-11
Maximum Current Rating 10A
Maximum Voltage Rating 150V dc
Mounting Type Through Hole
Termination Style Pin
Series BNX
Operating Frequency 1 → 5 GHz

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
