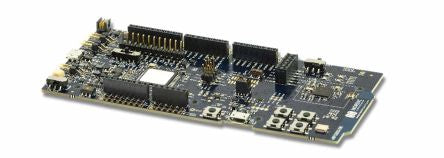

NORDIC SEMICONDUCTORnRF52833 DKnRF52833 DK nRF52833 Development Kit for nRF52833 SoC nRF52833 DK
Nordic Semiconductor nRF52833 DK nRF52833 Development Kit for nRF52833 SoC nRF52833 DK là module giao tiếp và không dây.
- Dùng với: NRF52833 SoC.
- Thông số chính: Phân loại: Bộ kit phát triển; Phân loại bộ kit: Bộ kit phát triển; Linh kiện chính: NRF52833; Tần số: 2.4 GHz, 64 MHz.
Mô tả gốc của nhà sản xuất (tiếng Anh):
The nRF52833 DK is an affordable single-board development kit for development of Bluetooth® Low Energy, Bluetooth mesh, Thread and Zigbee applications on the nRF52833 SoC.
The kit is hardware compatible with the Arduino Uno Rev3 standard, making it possible to a wide range of 3rd-party shields that are compatible with this standard, including the Power Profiler Kit from Nordic Semiconductor.
An included NFC antenna can be connected the kit to use the on-chip NFC-A tag functionality. The kit allows access to all I/O and interfaces via connectors and has 4 LEDs and 4 buttons which are user-programmable.
The DK can be powered via USB, but also supports Li-Po and CR2032 coin-cell batteries, which enables in-field testing of prototypes.
And on-board SEGGER J-link debugger allows programming and debugging both the on-board SoC and external SoCs through the debug out header.
The nRF52833 DK is an affordable single-board development kit for development of Bluetooth® Low Energy, Bluetooth mesh, Thread and Zigbee applications on the nRF52833 SoC.
The kit is hardware compatible with the Arduino Uno Rev3 standard, making it possible to a wide range of 3rd-party shields that are compatible with this standard, including the Power Profiler Kit from Nordic Semiconductor.
An included NFC antenna can be connected the kit to use the on-chip NFC-A tag functionality. The kit allows access to all I/O and interfaces via connectors and has 4 LEDs and 4 buttons which are user-programmable.
The DK can be powered via USB, but also supports Li-Po and CR2032 coin-cell batteries, which enables in-field testing of prototypes.
And on-board SEGGER J-link debugger allows programming and debugging both the on-board SoC and external SoCs through the debug out header.
