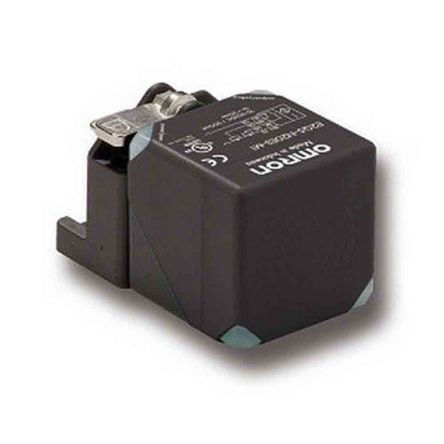

OMRONE2Q5-N40MF1-M1Inductive Proximity Sensor - Square, PNP Output, 40 mm Detection, IP67, IP69K

Body Style BlockConnection Type M12Detection Range 40mmDigital Switching Output Type PNP
Mã nhà sản xuất
E2Q5-N40MF1-M1
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2155371
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

This Omron long distance square inductive proximity sensor, from series E2Q5, has changeable active face positioning and reverse polarity protection.

It provides integrated short circuit protection

THÔNG SỐ KỸ THUẬT
Manufacturer Omron
Manufacturer Part No. E2Q5-N40MF1-M1
Thread Size M12
Sensor Technology Inductive
Body Style Block
Detection Range 40mm
Output Function No
Digital Switching Output Type PNP
Connection Type M12
Supply Voltage 10 → 30 V dc
IP Rating IP67, IP69K
Length 40mm
Mounting Type Non-Flush
Maximum DC Voltage 30V
Minimum Operating Temperature -25°C
Series E2E5
Maximum Switching Frequency 150Hz
Depth 40mm
Switching Current 200mA
Shielding Unshielded
Maximum Operating Temperature +85°C
Switching Frequency 150Hz

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
