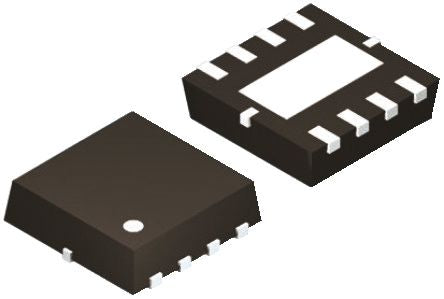

ON SEMICONDUCTORFDMS7698FDMS7698 N-Channel MOSFET, 22 A, 30 V PowerTrench, 8-Pin Power 56 ON Semiconductor

Channel Mode EnhancementChannel Type NMaximum Continuous Drain Current 22 AMaximum Power Dissipation 29 W
Mã nhà sản xuất
FDMS7698
Thương hiệu
Quy cách đóng gói
Cuộn 3,000 cái
Mã kho
1663405
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Channel Type N
Maximum Continuous Drain Current 22 A
Maximum Drain Source Voltage 30 V
Package Type Power 56
Mounting Type Surface Mount
Pin Count 8
Maximum Drain Source Resistance 15 mΩ
Channel Mode Enhancement
Minimum Gate Threshold Voltage 1V
Maximum Power Dissipation 29 W
Transistor Configuration Single
Maximum Gate Source Voltage -20 V, +20 V
Number of Elements per Chip 1
Minimum Operating Temperature -55 °C
Length 5mm
Height 1.05mm
Transistor Material Si
Width 6mm
Maximum Operating Temperature +150 °C
Typical Gate Charge @ Vgs 17 nC @ 10 V
Series PowerTrench
