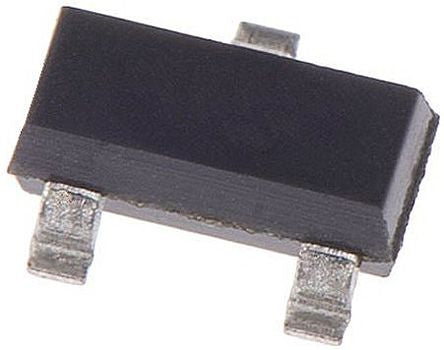

ON SEMICONDUCTORMMBTA05ON Semi MMBTA05 NPN Transistor, 500 mA, 60 V, 3-Pin SOT-23

Maximum Collector Base Voltage 60 VMaximum Collector Emitter Saturation Voltage 0.25 VMaximum Collector Emitter Voltage 60 VMaximum DC Collector Current 500 mA
Mã nhà sản xuất
MMBTA05
Thương hiệu
Quy cách đóng gói
Cuộn 3,000 cái
Mã kho
1663648
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Transistor Type NPN
Maximum DC Collector Current 500 mA
Maximum Collector Emitter Voltage 60 V
Package Type SOT-23
Mounting Type Surface Mount
Maximum Power Dissipation 350 mW
Minimum DC Current Gain 50
Transistor Configuration Single
Maximum Collector Base Voltage 60 V
Maximum Emitter Base Voltage 4 V
Maximum Operating Frequency 100 MHz
Pin Count 3
Number of Elements per Chip 1
Maximum Collector Emitter Saturation Voltage 0.25 V
Width 1.3mm
Dimensions 2.9 x 1.3 x 0.93mm
Maximum Operating Temperature +150 °C
Minimum Operating Temperature -55 °C
Height 0.93mm
Length 2.9mm
