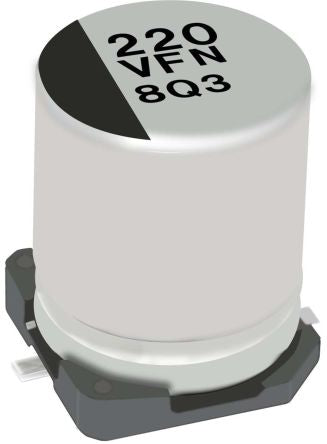

PANASONICEEEFN1C330R33μF Electrolytic Aluminium Electrolytic Capacitor 16V dc, Surface Mount - EEEFN1C330R

Điện dung 33µFĐường kính 4mmKhoảng cách chân 1mmKiểu lắp Surface Mount
Mã nhà sản xuất
EEEFN1C330R
Thương hiệu
Quy cách đóng gói
100 cái (băng liên tục)
Mã kho
2043382
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Panasonic aluminium electrolytic V type FN series capacitor is a vibration proof surface mount capacitor with 33 μF capacitance. This capacitor mostly used in applications like industrial, infrastructure and automotive applications.

life expectancy under temperature up to 105 ? is 2000 hours

AEC-Q200 compliant

THÔNG SỐ KỸ THUẬT
Manufacturer Panasonic
Manufacturer Part No. EEEFN1C330R
Capacitance 33µF
Voltage 16V dc
Mounting Type Surface Mount
Technology Aluminium Electrolytic
Dimensions 4 x 5.8mm
Length 5.8mm
Diameter 4mm
Maximum Operating Temperature +105°C
Lead Pitch 1mm
Tolerance ±20%
Series FN-V
Polarised Polar

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
