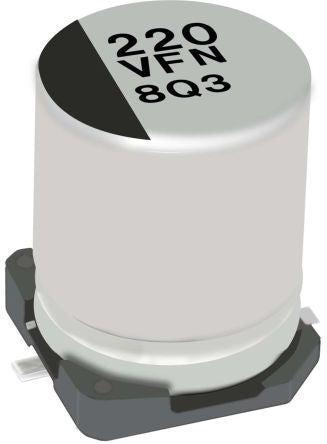

PANASONICEEEFN1C681UP680μF Electrolytic Aluminium Electrolytic Capacitor 16V dc, Surface Mount - EEEFN1C681UP

Điện dung 680µFĐường kính 8mmKhoảng cách chân 3.1mmKiểu lắp Surface Mount
Mã nhà sản xuất
EEEFN1C681UP
Thương hiệu
Quy cách đóng gói
Cuộn 500 cái
Mã kho
2043385
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Panasonic aluminium electrolytic V type FN series capacitor is a vibration proof surface mount capacitor with 680 μF capacitance. This capacitor mostly used in applications like industrial, infrastructure and automotive applications.

life expectancy under temperature up to 105 ? is 2000 hours

AEC-Q200 compliant

THÔNG SỐ KỸ THUẬT
Manufacturer Panasonic
Manufacturer Part No. EEEFN1C681UP
Capacitance 680µF
Voltage 16V dc
Mounting Type Surface Mount
Technology Aluminium Electrolytic
Dimensions 8 x 10.2mm
Length 10.2mm
Minimum Operating Temperature -55°C
Diameter 8mm
Maximum Operating Temperature +105°C
Lead Pitch 3.1mm
Polarised Polar
Tolerance ±20%
Equivalent Series Resistance 160mΩ
Ripple Current 600mA
Automotive Standard AEC-Q200
Series FN-V

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
