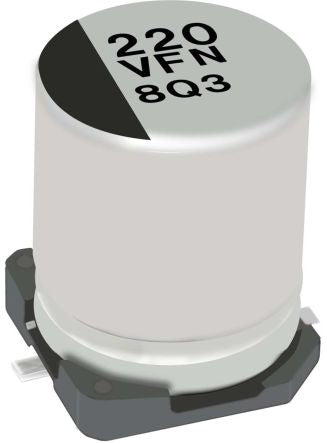

PANASONICEEEFN1J121UP120μF Electrolytic Aluminium Electrolytic Capacitor 63V dc, Surface Mount - EEEFN1J121UP

Điện dung 120µFĐường kính 10mmKhoảng cách chân 4.6mmKiểu lắp Surface Mount
Mã nhà sản xuất
EEEFN1J121UP
Thương hiệu
Quy cách đóng gói
100 cái (băng liên tục)
Mã kho
2043408
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The Panasonic aluminium electrolytic V type FN series capacitor is a vibration proof surface mount capacitor with 120 μF capacitance. This capacitor mostly used in applications like industrial, infrastructure and automotive applications.

life expectancy under temperature up to 105 ? is 2000 hours

AEC-Q200 compliant

THÔNG SỐ KỸ THUẬT
Manufacturer Panasonic
Manufacturer Part No. EEEFN1J121UP
Capacitance 120µF
Voltage 63V dc
Mounting Type Surface Mount
Technology Aluminium Electrolytic
Dimensions 10 (Dia.) x 10.2mm
Length 10.2mm
Diameter 10mm
Maximum Operating Temperature +105°C
Lead Pitch 4.6mm
Series FN-V
Tolerance ±20%
Polarised Polar

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
